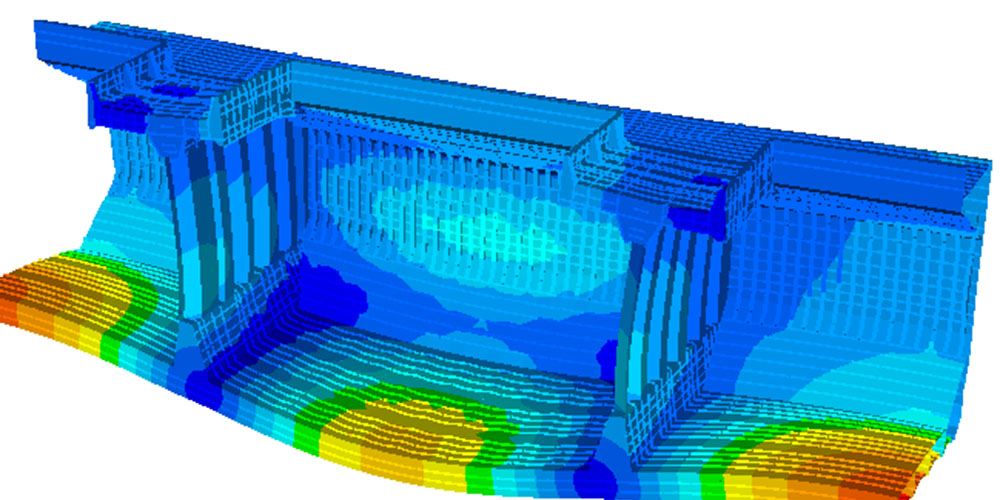

FE results presentation postprocessor - Xtract

A high-performance general purpose model and results visualization program

FE results presentation postprocessor

The Xtract software module is an FE results presentation postprocessor. It presents results for nodal positions, result point positions, interpolated element values and average values over elements.

What you get

• Displays, animates and presents results of hydrodynamic and static/dynamic structural analyses
• Used for examining models at any level of detail with or without analysis results
• Interactive zooming, rotating, panning and cutting for best view of model
