Frequency domain hydrodynamic analysis of stationary vessels

General hydrodynamic analysis program for calculating wave-structure interaction for fixed and floating structures of arbitrary shape

Wadam

Wadam is a general hydrodynamic analysis program for calculating wave-structure interaction for fixed and floating structures of arbitrary shape. The analysis features of the Wadam software module represent state-of-the-art technology and the program is unsurpassed for practical applications. Airy wave theory is applied and results are presented as complex transfer functions or as deterministic results for specified phases of the wave.

What you get

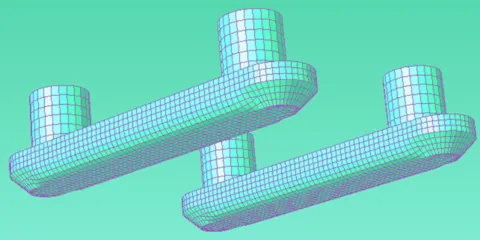

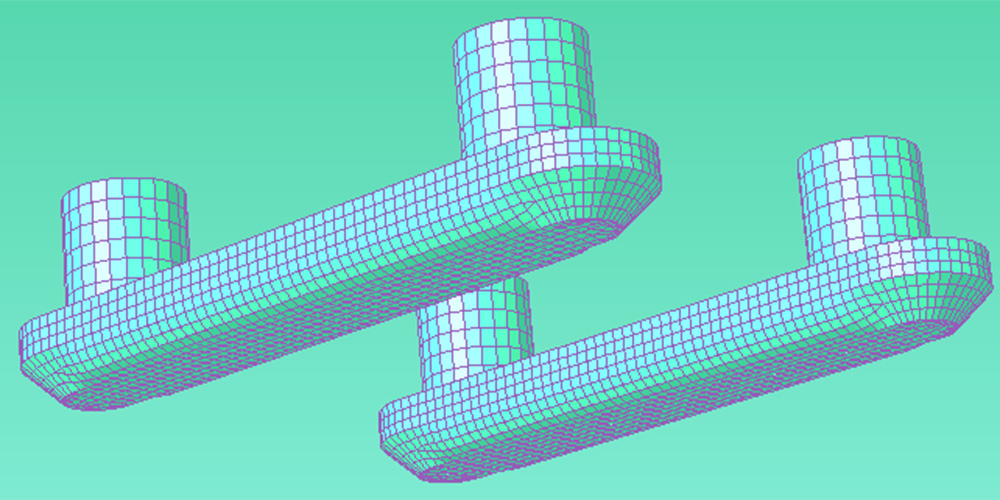

Wadam uses widely accepted linear frequency domain methods for marine hydrodynamics, the 3D radiation-diffraction theory employing a panel model (created by GeniE) and Morison equation in linearized form employing a beam model (also created by GeniE)
The structure may comprise any combination of panel model and beams
Wadam software is executed from HydroD where modelling of the environment is done
Hydrodynamic loads computed by Wadam are automatically included in the structural analysis
Computes transfer functions of second order mean wave drift forces and pressure distribution on the hull surface
Also option for solving the full second-order problem
Wave/current interaction can be handled for current speeds up to 3-4 knots
Wadam software requires and is executed from HydroD (stability analysis), where modelling of the environment is done
